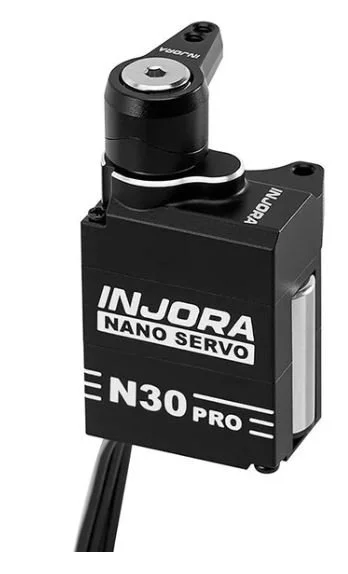

Features:
CNC-machined aluminum servo case for added strength and durability
Metal gear set built to handle higher steering loads
Spring-loaded servo saver helps absorb impacts and protect the servo gears
Built for heavier SCX30 builds that need stronger and faster steering than the standard N30 servo
Specifications:
Part Number: N30 PRO
Motor Type: Brushed Coreless
Gear Type: Metal
Case Material: Aluminum Alloy
Feedback Type: Potentiometer
Operating Voltage: 5–6.0V
Control Signal: PWM
No-load Speed (6V): 0.045 sec/60°
No-load Current (6V): 130mA
Stall Torque (6V): 4kgf·cm
Stall Current (6V): 1740mA
Operating Angle: 180° (500–2500 μsec)
Dimensions: 15.8×12.85×21.98mm
Wire Length: JR 115mm / 28AWG
Weight: 7.7g
Waterproof: No
