INJORA INJS2065 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 RC Crawler TRX4M Upgrade

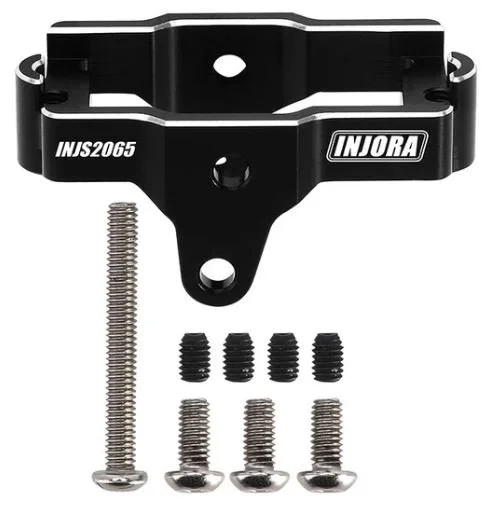

Note: Please use our servo and servo mount together. If you use the stock plastic TRX4M servo mount, you will need to trim the servo mount.
Compatible with:
1/18 TRX4M Defender, Bronco, High Trail K10, F150
Features:
IP66 waterproof ratings, you can run it in the rain or underwater!
High voltage and digital 2065 servo
Stainless steel gears and lower noise
Specifications:
Item Name: INJS2065 Servo
Dead band: 2μs
Neutral Position: 1500μs/330hz
Motor: Core Motor
Remote Control Angle: 90-120°±2°
500-2500μs Angle: 180°±2°
Voltage Range: 4.8V-8.4V
Operating Speed(6.0V): 0.09''/60°
Operating Speed(8.4V): 0.06''/60°
Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
Dimensions: 23*13*25.8mm
Weight: 20g
Connector Wire Length: JR 300 mm
Bearing: 1BB
Packing Weight: 28g
Package size: 36X23X38mm
Spline: Φ5.9 25T
Required tools:
1* 1.5mm hex screwdriver
1* 2.0mm hex screwdriver
