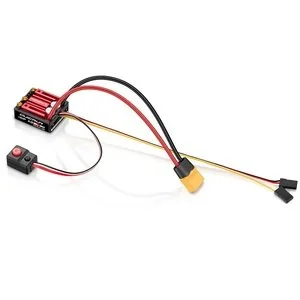

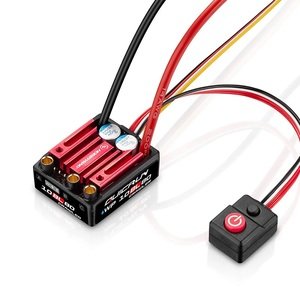

QUICRUN WP 10BL80 ESC for Crawlers
ESC serves both Brushed & Brushless Crawlers
Compact, Powerful, and Capable: 4S/80A performance in a 36x30x15.5mm package. Superior low-speed torque and smooth operation for 1/10th scale crawling.
Includes:
1x WP 10BL80 Crawler ESC
Factory-installed XT60 plug
1x Decal and Manual
1x Heatshrink kit, double-sided tape, and zip ties.
Features:
It supports Sensorless Brushless motors & Brushed Motors.
Compatible with most brushed or brushless motors on the market.
Fully waterproof design for all conditions.
Super internal switch-mode BEC with switchable voltage of 6V/7.4V/8.4V for usage with high torque and high voltage servos.
Separate programming port to easily connect the LED program box or the LCD program box pro to the ESC.
Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, and fail safe (throttle signal loss protection).
It has the function of using transmitter (AUX channel) to adjust the drag brake force in real time.
Specifications:
Continuous/peak current: 80A/240A
Motor Type: Sensorless brushless motor, and brushed motor
Applications: Outer 3530SL sensorless outrunner motors; 540, 555 including other brushed motors
LiPo Cells: 2-4S LiPo
BEC Output: 6.0V/7.4V/8.4V, 5A
Size: 36(L)*30(W)*15.5(H)mm
Weight: 47.8g (included wires & connectors)
Programming Port: Independent programming port
