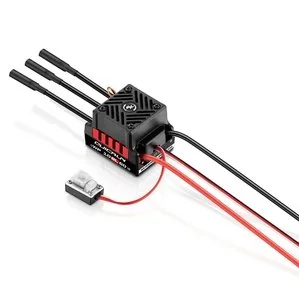

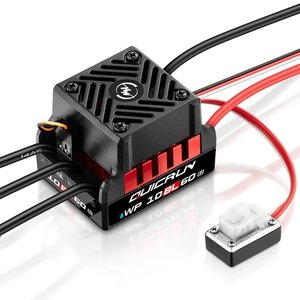

Quicrun WP 10BL60G2 ESC
Features:
Intelligent Freewheeling Technology: The intelligent freewheeling technology enables the ESC to achieve higher driving efficiency at lower operating temperatures, improving stability and reliability.
Small and Compact: The new QuicRun WP 10BL60 ESC is more compact than its predecessor, reducing length by 2.5mm and width by 1.5mm, enhancing layout and wiring convenience.
Efficient Cooling System: The heat sink's mesh design efficiently cools the ESC. Copper thermal bars on each phase enhance cooling, while a fan ensures optimal operating temperatures.
Capacitor Overheating Protection: A mesh-type heat sink design rapidly conducts internal heat to the heat sink. Copper thermal bars on the power board further aid heat dissipation. A fan maintains efficient cooling conditions.
All-Weather Operation Capability: With an IP67 protection level, the ESC excels in various environments, including rain, dust, and sand, thanks to its excellent waterproof and dust-proof features.
Versatile Programming Methods: Supporting three programming methods - Multi-function LCD PRO programming box, LED programming box, and SET key - the ESC allows users to easily adjust parameters according to their preferences.
Exceptional Value and Ease of Use: Designed for entry-level users, this high-quality product is simple to use and install, offering great value and convenience.
ESC Specifications:
Cont./Peak Current: 60A/360A
Motor Type: Sensorless/Sensored Brushless Motor (only operates in sensorless mode)
Applications: 1/10 On-Road, 1/10 Buggy, 1/10 Short Course Truck
Motor Limit: 2S KV < 6000, 3S KV < 3500
Lipo Cells: 2-3S
BEC Output: 6V/3A
Cooling Fan: Powered by built-in BEC
Size/Weight: 46x36.5x34.3mm/82.6g (included wires)
Programming Port: Shared with fan port
