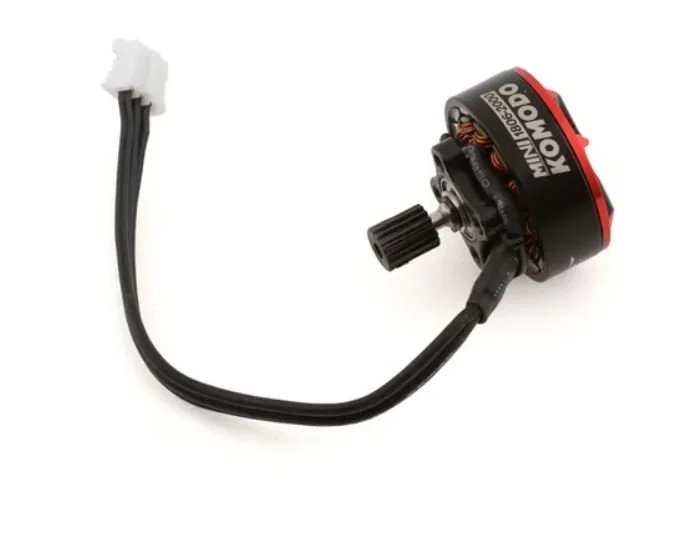

Furitek Mini Komodo 1806-2500kV Brushless Motor. Furitek has taken their popular 2204 size Komodo motor and made it even smaller with this 1806 version. Featuring a smaller size for less weight, compact size and still making plenty of power, the Mini Komodo 1806 is an excellent addition to the Axial SCX24 rock crawler.
Features:
14 Pole 12 slot hi-torque motor design
High purity and higher temperature single copper windings lower copper losses lowering temps and increasing efficiency
Super thin (0.2mm) stator laminations offer lower eddy losses and maximizes efficiency
Japanese NMB High RPM ABEC5 bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
CNC machined 6061-T6 billet aluminum heatsink
Precision engineered for maximum energy conversion
Specifications:
Kv (RPM/Volt): 2500
No-load Current (@10v): -
Wattage: 160W
Battery: 2-4S
Resistance: 0.20ohm
Max Current: 14A
Slot/Pole: 12S14P
Motor Size (DxL): 23x15mm
Stator Size: 1806
Weight (g): 19g
Includes:
(1) Mini Komodo 1806-2500kV Brushless Motor with Pinion Gear
(1) Allen Wrench
Mounting Hardware
